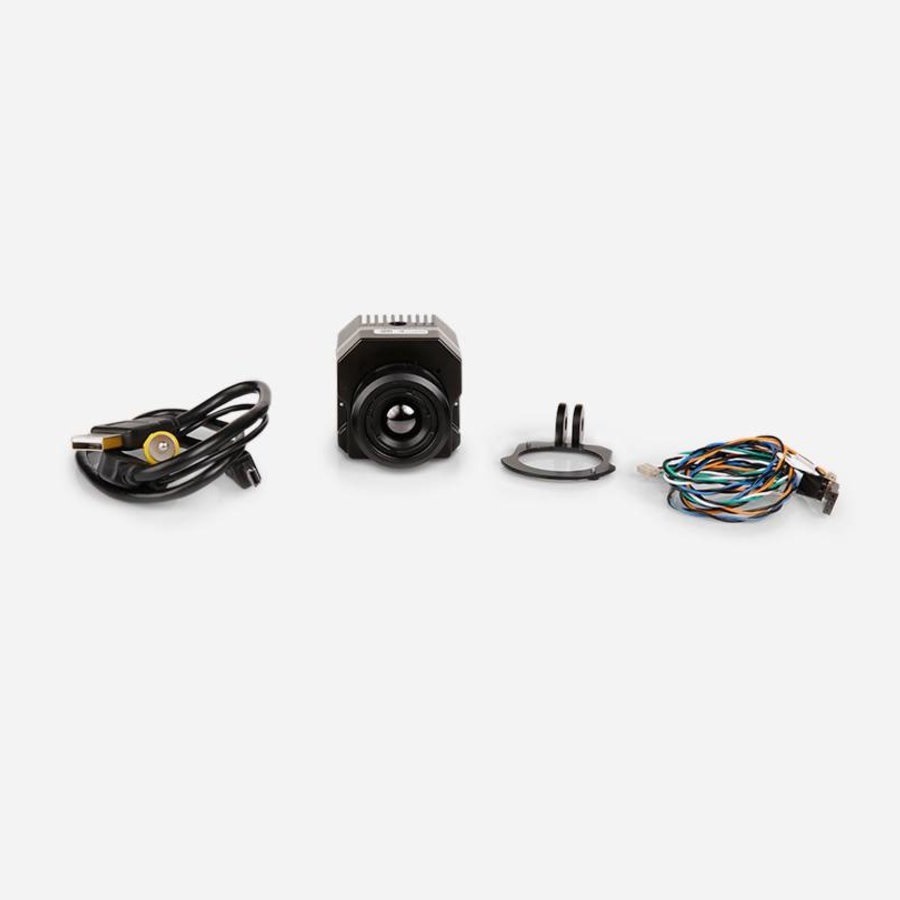

Gimbal Systems / FLIR VUE PRO Thermal Camera with 19 mm lens for drones, 640 x 512, 30Hz

Description:

Designed for professional use, FLIR Vue Pro is more than a thermal camera, it is a thermal measurement instrument and data recorder that adds tremendous value to your sUAS operations and services.

It can record digital videos and still imagery to a removable micro-SD card. It is equipped with a 19 mm lens and features a 640 x 512 pixel thermal resolution with a 30 Hz thermal frame rate.

The FLIR Vue Pro R offers the power to gather accurate, non-contact temperature measurements from an aerial perspective. Each still image the Vue Pro R saves contains calibrated temperature data embedded in every pixel, adding more value to sUAS operations and services than ever.

Delivering industry-leading thermal imaging quality and affordability, the Vue Pro and Vue Pro R add full data recording of thermal video and 14-bit still imagery, making them perfect for airborne solar panel inspection, building inspection, livestock management, natural resource management and protection, public safety, and search and rescue.

AFFORDABLE THERMAL IMAGING AND ON-BOARD DATA RECORDING

Record digital video and still imagery to a removable micro-SD card, eliminating data transmission loss.

Simple power-in/video-out interface over 10-pin mini-USB connector

Image settings optimized for airborne operations

Record real-time thermal videos in MOV format

Aircraft flight information is saved in each still image

MAVLINK INTEGRATION & PWM CONTROLS

In addition to MAVLink compatibility for image geo- tagging, the accessory port allows remote in-flight camera function control.

Multiple recording options including flight data in each image

Mobile app allows for PWM configurations in the field

MAVLink integration with convenient RS-232 connection

FLEXIBLE, POWERFUL CAMERA CONTROL AND CONFIGURATION OPTIONS

Easy configuration with the FLIR UAS app lets pilots set color palettes and image optimization features.

Control selectable camera functions with PWM inputs – imagery controls, recording start/stop, and still image capture

Vue Pro R saves Radiometric JPEGs with temperature data embedded in every pixel

Vue Pro R saves still images as Radiometric JPEGs, or 14-bit TIFF formats

On-Board Recording

Vue Pro records digital video and still imagery to a removable micro-SD card so you won’t lose any of your data to transmission loss.

MAVLink Integration & PWM Controls

In addition to MAVLink compatibility for image geo-tagging, the Accessory Port lets you control camera functions in flight by integrating with your drone’s control system.

Easy to Configure

Easy configuration with the FLIR UAS app lets pilots set color palettes, image optimization features, configure PWM inputs without lugging a computer to the field.
