Gimbal Systems / FlyTron FM-10X V2 800TVL Infrared Camera (FM10X Micro 700TVL Zoom Camera)

Description:

FM10X is the smallest zoom camera on the planet with 700TVL resolution and Sony EFFIO technology for small UAV and remote survilance market.

10X Quality optics, 1/3 "CCD and DSP technology EFFIO making this camera is unique. The low light performance of the FM10X is excelent.960H resolution image sensor and DSP EFFIO are generating the highest resolution as possible to transmit video over analog transmitters.

The Noise Reduction System Eliminating nighttime noises and gives perfect gradients and sharp edges.

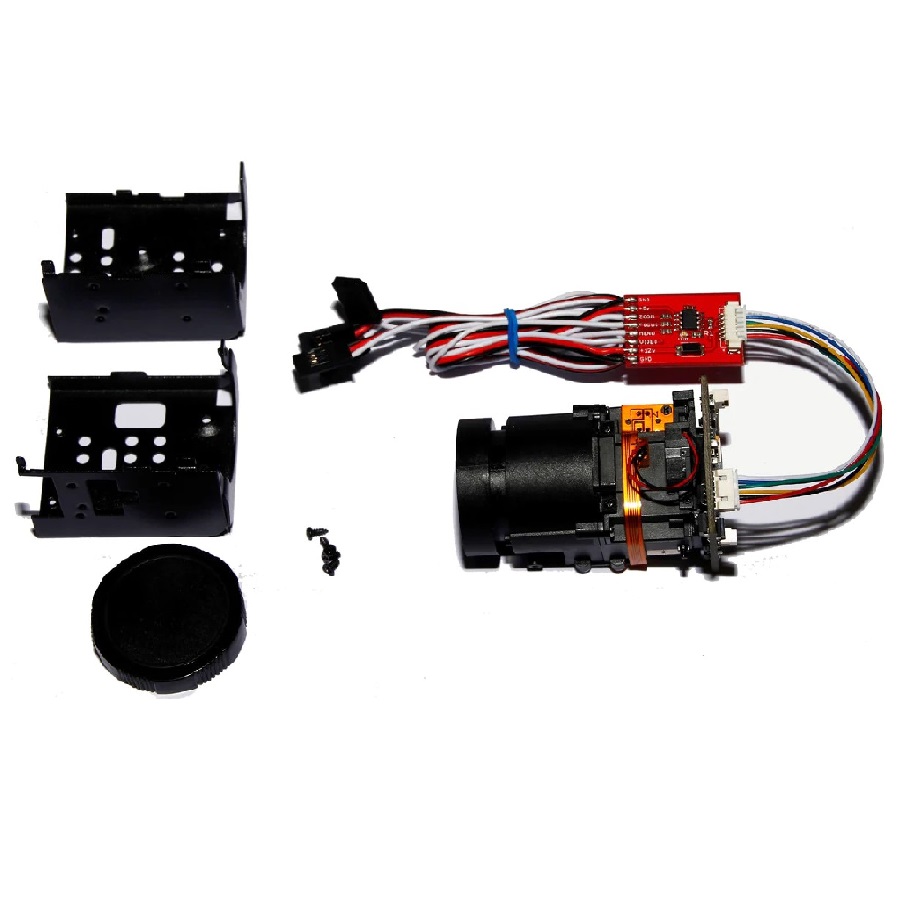

The camera comes with a flat cable and our RC Camera Control v2.0 card.
You can control the camera zoom, focus and menu options with your RC transmitter. (1 channel enough for zoom, 3 channel require for zoom, focus and menu functions)

What is the Sony EFFIO Technology?

EFFIO is the innovative DSP technology by Sony. In this technology, the image sensor resolution is higher than analog video standards. (960H) and DSP gene rates enhanced analog video from the original high-definition source.
EFFIO DSP detects the movements, object edges, colors, light levels and genarates700TVL sharp and useful video signal from the original high definition image. For example, moving objects looks sharper than conventional cameras, object surfaces looks better and noiseless.
Sony EFFIO-E DSP Engine
700 TV Lines Video Resolution
2D Noise Reduction
Color: 0.1Lux, B/W: 0.01Lux
Ultra High Speed Focus function over EFFIO DSP
1/50~1/10000 s Shutter Speed
-20 to +70 Celcius Working Temperature
Menu Functions: AWB , Digital noise reduction , Light suppression,Mirror
Video Format: PAL/NTSC
Weight: 53gr naked. / 108gr with metal shield.
Dimentions: 60x36x40mm
Optical Zoom Factor: 10x (3.9mm - 39mm)
Focus/Iris: AUTO / MANUAL / K AUTO
Backlight Compensation
Light Suppression (paints the light sources to black.
the sun and car headlights looks black)
Digital Control Protocol: Pelco-D
RC servo channel control: Zoom control with auto focus
Super Infrared (720-900nm) sensitivity for IR Filters
Supply Voltage is 12volt, also works with 3S LiPO (11.1V)
190mA power consumption
