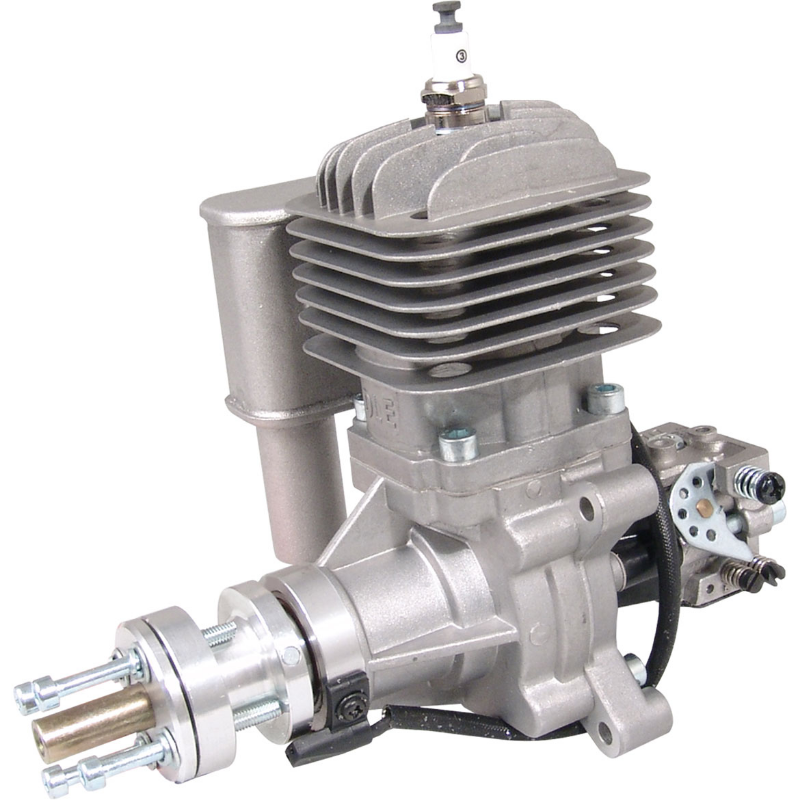

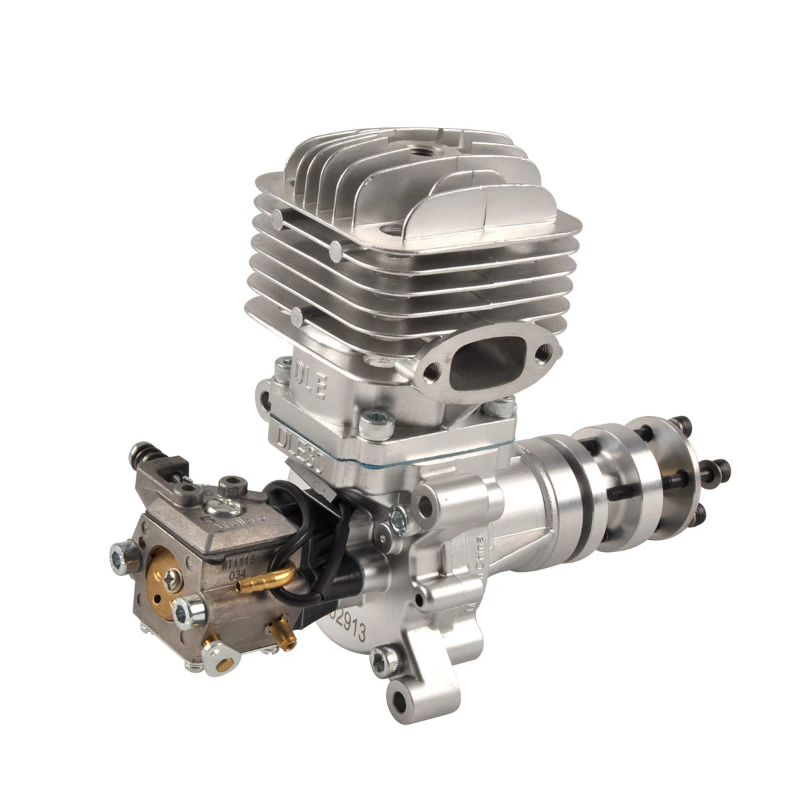

Engines and Accessories / DLA30 30cc UAV Engine

Description:

With the DLE-30, you get the economy of a gas engine in the size of a glow engine. Electronic ignition provides the spark for fast starting. Timing automatically adjusts for peak power throughout the rpm range. And a made-for-flight design ensures the best power-to-weight ratio for performance. A rear-mounted pumper carb ensures easier installs and smooth idling before you fly — and dependable fuel flow while you are flying.

Performance: 3.7HP/8500rpm
Idle Speed：1600 rmp/min
Static Thrust：8.5kg/100 metersAltitude
Static Thrust：7.5kg/1800 metersAltitude
Recommended Propeller：18×8 ; 18×10 ; 19×8 ; 20×8 ;
Spark Plug Type： NGK CM6
Displacement：30.5cm3
Diameter x Stroke：36mm×30mm
Compression Ratio：7.6：1
Lubrication Ratio：30:1
Weight of Main Engine: 920g
Weight of Exhaust：60g
Weight of Ignition：130g
Ignition voltage：4.8V-8.4V

Tutorial: DLA30 30cc UAV Engine Tutorial
