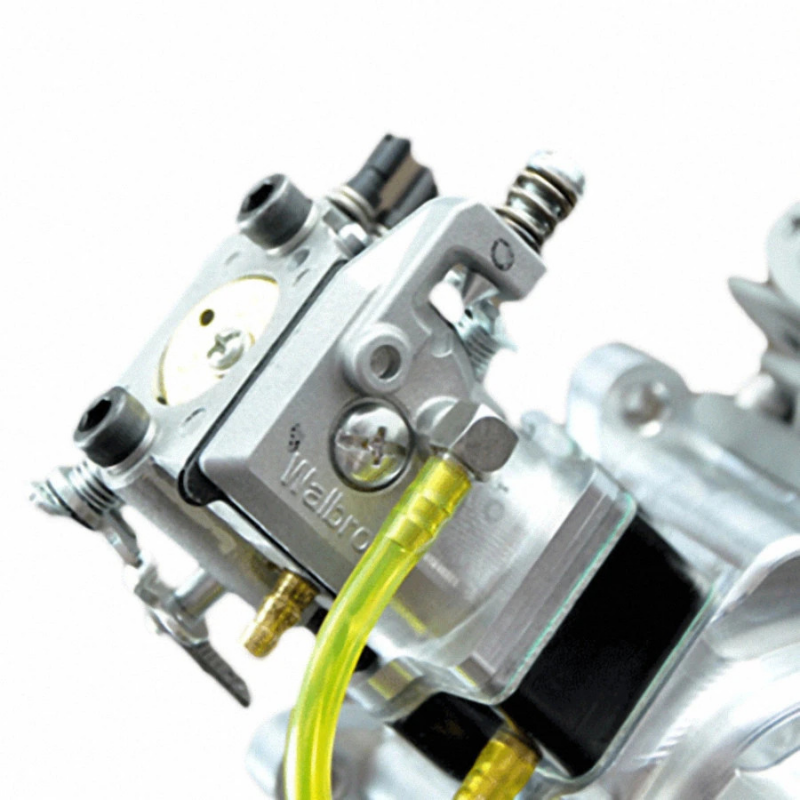

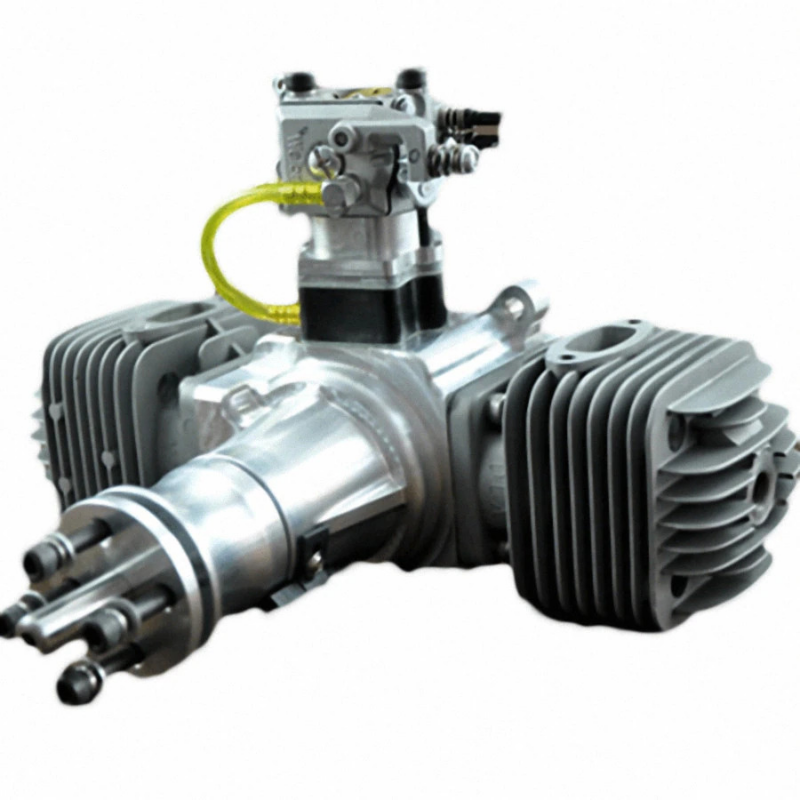

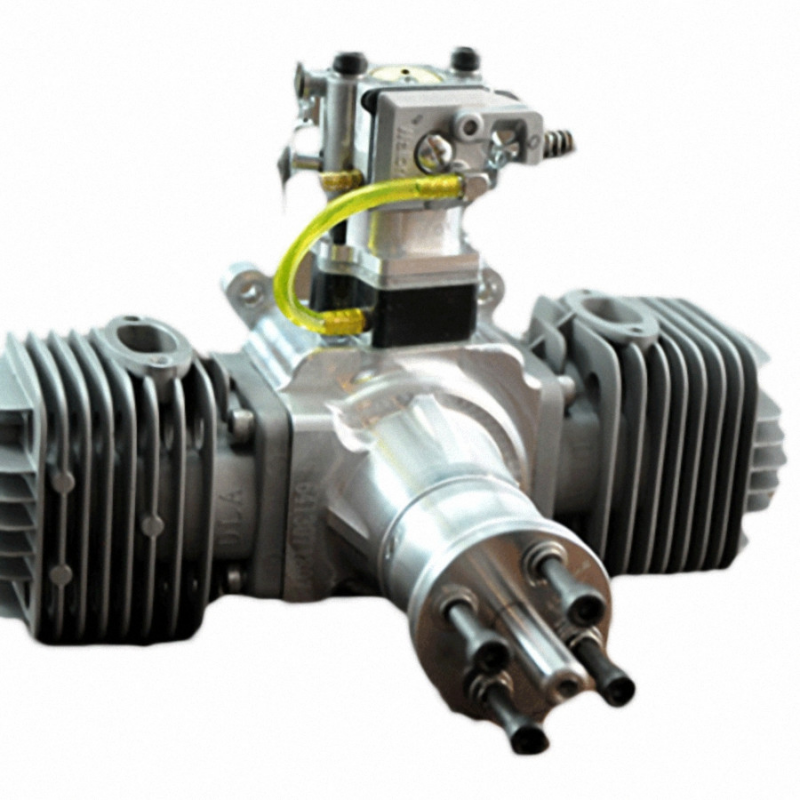

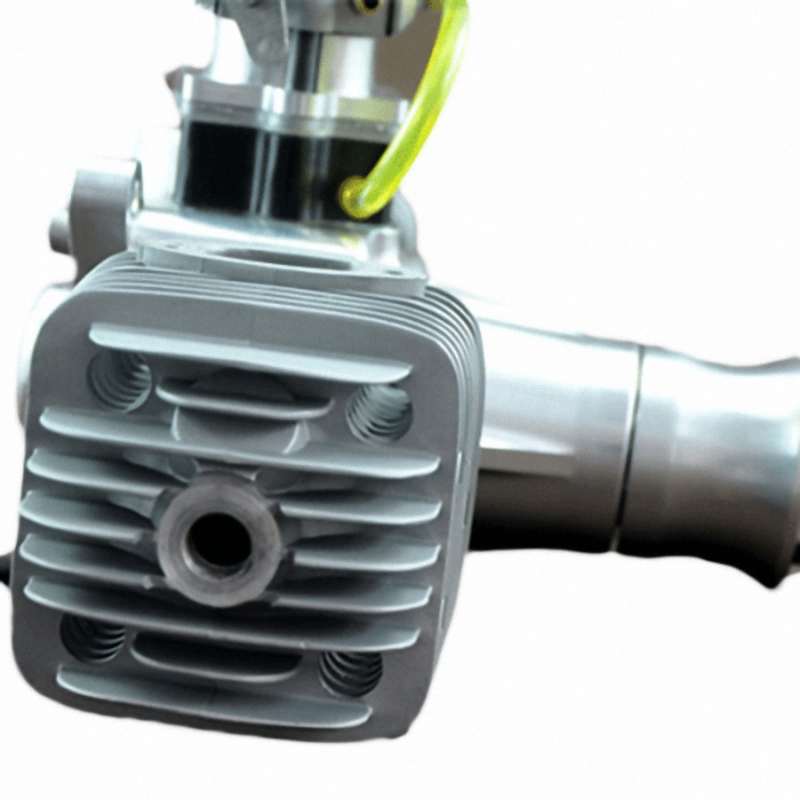

Engines and Accessories / DLA64 64cc UAV Engine

Description:

This DLA 64cc UAV engine is designed for large fixed wings and VTOL UAVs.
Its crankcase, crankshaft and central screws are all made of high performance materials with CNC processing method. With beautiful appearance, high-precision, drop resistance, fatigue resistance, good stability and strong power performance, it has obtained good reputation from the users.

Specification:

Exhaust amount: 64cc Output: 7.2HP Cylinder Bore/ Stroke: 37MM/30MM speed range: 1600-6900 RPM Pulling force: 16KG/1000 Meter altitude Cylinder arrangement: twin boxer Fuel: Gasoline + 2T synthetic oil Lubrication Ratio: 25:1~30: 1(trial run) 40: 1~50:1(normal flying) 92# 93# gasoline 2T synthetic oil Compression Ratio: 8:1 Propeller Recommended: 22*10 .23*10 24*8 23*8 Spark Plug: DLA CM6 .Iridium Voltage: 6.6v-8.4v 2 LiPo batteries recommended. Weight: Main engine: 1700g Exhaust pipe: 69g*2 Ignition: 180g standoffs: 22*4g Customization: According to Customer's need and specifications

Feature:

This engine is mainly used for fixed-wing with take-off weights (including Gasoline) not more than 25 KGS. Its crankcase crankshaft central screws are all made of domestic high-performance materials by CNC processing method. With beautiful appearance high-precision drop resistance fatigue resistance good stability strong power performance.

Package include:

1*main engine 1*CDI 2*Spark plug 2*Exhaust pipe 4*standoffs 1*Test report 1*Manual.

Tutorial: DLA64 64cc UAV Engine Tutorial
