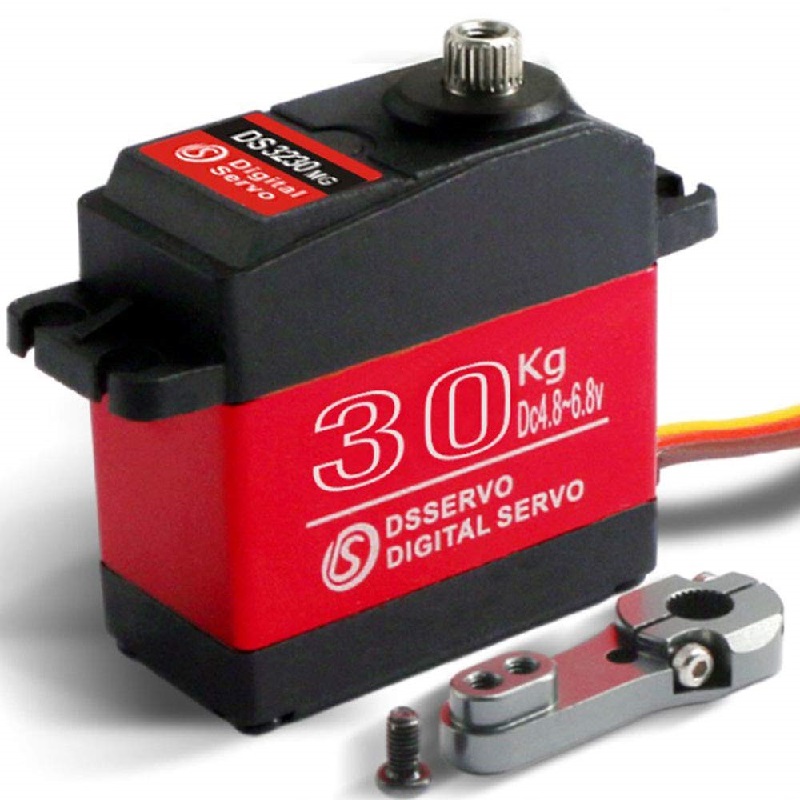

Servo Motors / DS3230MG 30Kg Waterproof Digital Servo

Description:

Size: 40.0*20.5*40.5mm Operating speed ( 6.8V ): 0.17 sec/60 degree Stall torque ( 6.8V ): 34.5kg/cm.
High-precision metal gear with hard anodizing for better accuracy and longer service life， Water proof rubber seals screws, made of first-grade material ensure the longevity of the products.
High Quality - equipped with strong copper & aluminum gears,CNC aluminium middle Shell.
180 degrees（PWM 500-2500mus）, Excellent linearity, precision control.
Standard servos 1/8 and 1/10 scale great for DIY Project, crawler,truck,buggy,robotic arm and so on.

Apply Environmental Conditon:

1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C

Mechanical Specification:

1.Size: 40.0*20*40.5mm
2.Weight: 58g±2g
3.Limit angle: 360°
4.Bearing: Double bearing
5.Horn gear spline: 25T Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 300mm±5mm
8.Motor: Carbon brush motor

Electrical Specification:

1.Working voltage range: 4.8 - 6.8V
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec
6.Running degree: 180±3°(PWM 500～2500usec)
7.Dead band width: 3 usec
8.Rotating direction Counterclockwise: (when 1000～2000usec)

Package Included:

1 x Digital Servo
1 x 25T Adjustable metal servo arm
